3D Print Desktop - D2

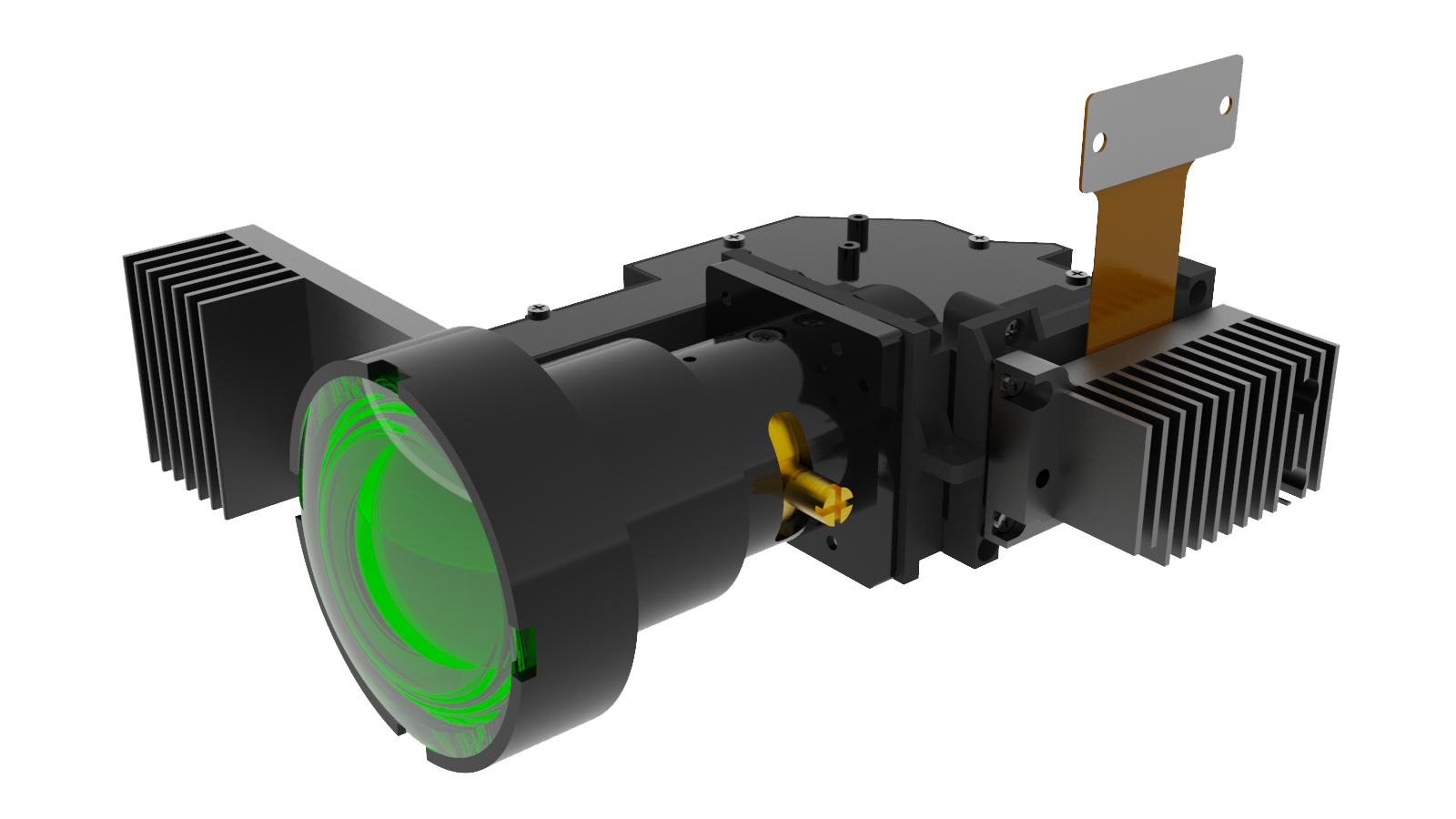

                                                                                                                EVT-D2 Optical Engine Specification



Parameter

Content

Description



Micro-display Panel

0.3" DMD TRP Single Panel


Resolution

1280 × 720 (720p)/
 2560 × 1440 (XPR)
XPR Optional


Aspect Ratio

16 : 9


Optical Power(mW)

500


Light Source

UV-LED @ 405 nm


Lifetime(hrs)

10000


Working Distance(mm)

100


Pixel Shape

Square


Projected Pixel Size

85μm / 43μm


Contrast

500 : 1 Full on / Full off


Dynamic Contrast

200 : 1 Checkerboard Pattern


Uniformity

 90%(JBMA)
85%(MIN/MAX)



TV Distortion

0.1%


Focusing

Manual


Offset

0%


Projection Size(mm)

108.8 × 61.2 @ 100 mm


Dimension(mm)

95.5 × 94.7 × 39.0
w/o heatsink
