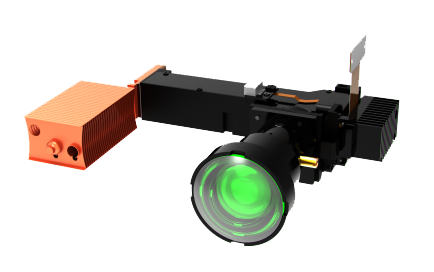

3D Print Professional - D5






EVT-D5 Optical Engine Specification



Parameter

Content

Description



Micro-display panel

0.3" DMD TRP Single panel


Resolution

1280 × 720 (720p)/
2560 × 1440 (XPR)
XPR optional


Aspect ratio

16 : 9


Optical Power(mW)

1000


Light Source

UV-LED @ 405 nm


Lifetime(hrs)

10000


Working Distance(mm)

210


Pixel Shape

square


Progected Pixel Size

156μm/78μm


Contrast

500 : 1 Full on / Full off


Dynamic Contrast

200 : 1 Checkerboard pattern


Uniformity

90%


TV Distortion

< 0.5%


Focusing

Manual


Offset

0%


Projection size(mm)

199×112 @ 210 mm


Dimension(mm)

98×67×39 w/o heatsink
