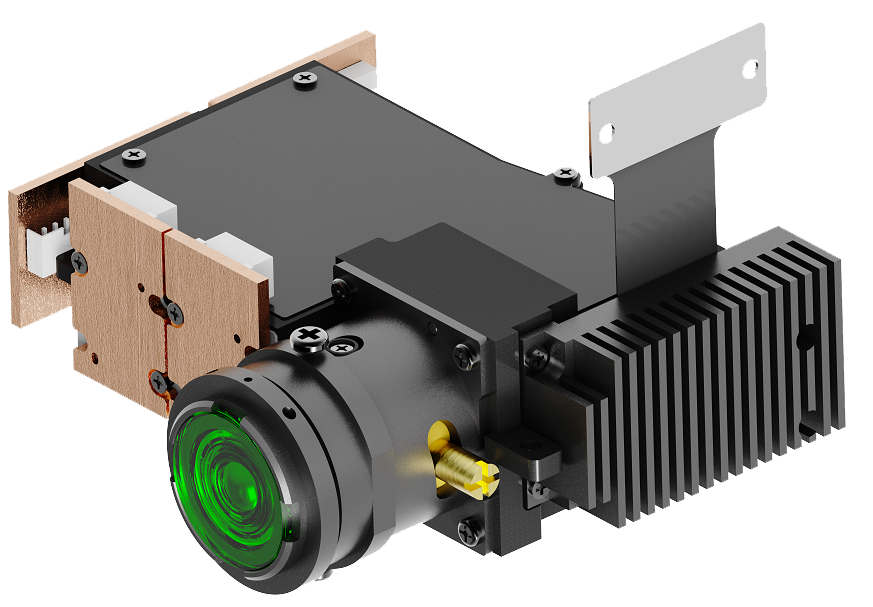

Industrial type - V2
工业类型 - V2


V2 Optical Engine Specification


Parameter

Content

Description

Micro-display panel

0.3" DMD TRP

Single panel


Resolution
1280 × 720 720p HD

Aspect ratio
16 : 9

Luminous (lm)
85 lm @ 15W ANSI

Light Source
RGBB-LED

Lifetime(hrs)
20000

Throw ratio
4.8

Contrast
1000 : 1 Full on / Full off

Uniformity
> 85%

TV Distortion
< 0.5%

Focusing
Manual

Offset
0%

Color Temperature(K)
> 6500

Projection size (inch)
1" ~ 14" 0.17 ~ 2m

Dimension(mm)
74 × 73 × 26 w/o heatsink
                   F / # 2.4 4 5.6 8
  DOF
@Projection Distance 300mm
±2.5mm ±4.5mm ±7.0mm ±10.0mm
